I30EX26185,110-111021

تترا پک 170 V

سال ساخت 2003

شروع به کار 2004

اتمام کار 2011

ظرفیت : 9000 کارتن در ساعت

حجم : 500 و 750 و 1000 میلی لیتر

Technical details:
Volume (ml): 1,000 ml, 750 ml, 500 ml
Tray type: TetraTop flat top
Capacity: 9,000 cartons / h

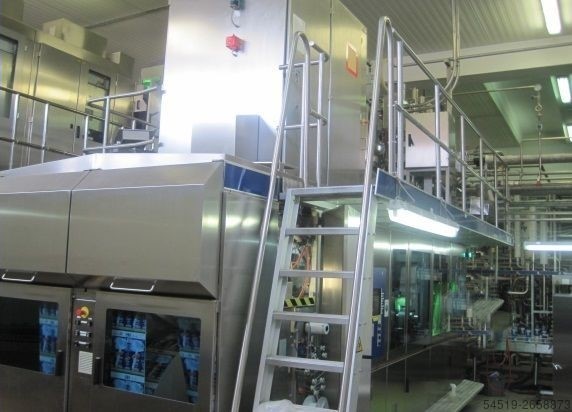

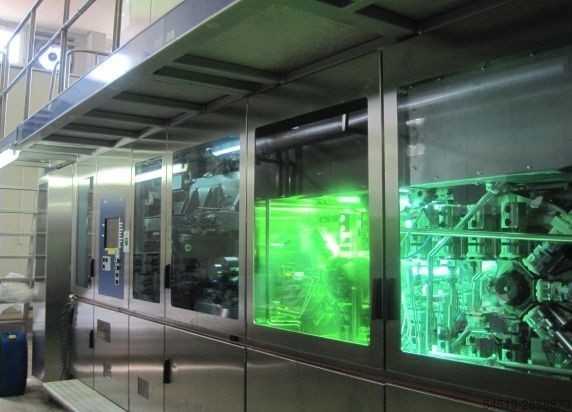

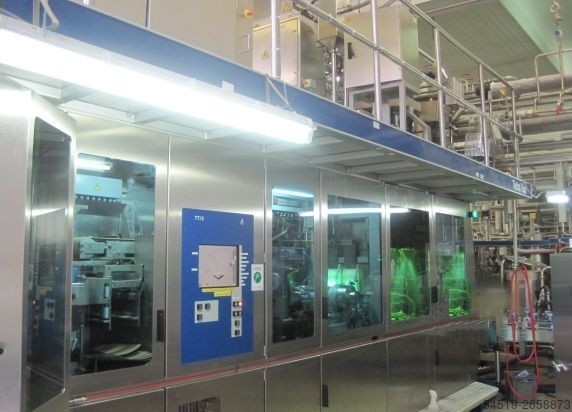

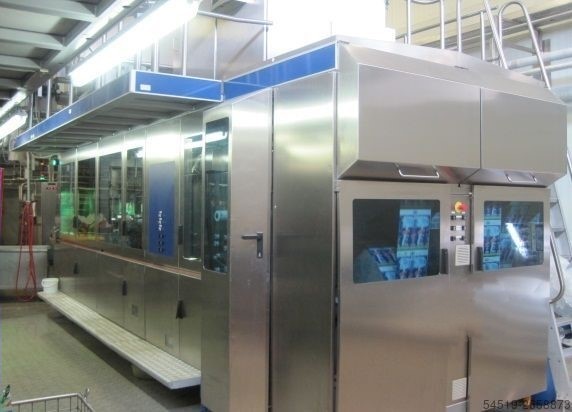

Filling machine TetraTop 170V, starting 2004, 2003 contract.
Rated power of the engine is 9,000 EH / h.

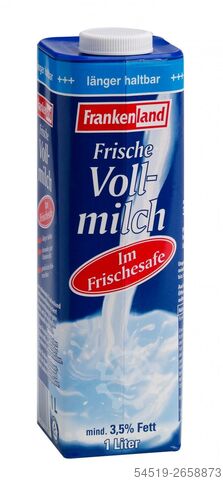

Formats: 1,000 ml cartons, 750ml cartons and 500ml cartons
Mileage (31.08.2011): 13.772 operating hours.

1 x HSE for conveying
1 x granulate funnel

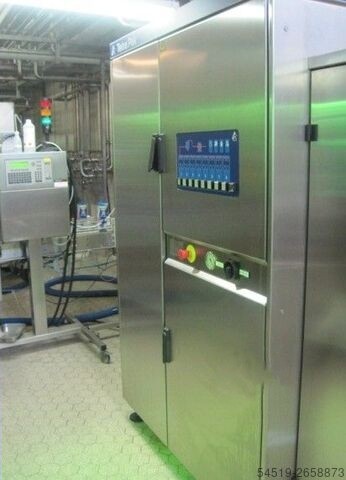

1 x HCCU for foam cleaning
1 x on stainless steel cylinder converted volume adjustment 190V type
1 x 20 replacement cartridges
2 x screw machines Tetra Pak type Capper 20 to screw on 38 mm screw caps
1 x manual roll feed to insert the rollers in the ASU
1 x roll pallet truck to the roller conveyor
1 x retrofit Rittal air conditioning unit for control cabinet

Following equipment included:
1 Traypacker make SEMA, formats TetraTop 1. 000ml, 500ml wrap around, tray 2 x 5
(Performance with 2 x 5 TetraTop 9000 cartons / h); can be changed on Tetra slim 1000ml tray 2 x 6 (performance at slim 6,600 cartons / h).
1 package of spare parts available
1 spare parts package SEMA Packer available.

Transport systems are not included and must be purchased separately by Tetra Pak or another manufacturer.
