خط کامل انواع شامپو

manufacturer     Various

COD: I30EX6086

Model   Shampoo line

Type: bucket

Cadence: 100 CPM

Understand :

BCM distributor-rectifier

SERAC filler-capper

ADV hood distribution bowl

ADMV lifting hopper

SERPIA degodizer

PE LABELLERS labeling machine

CERMEX case packer

Lot of spare parts

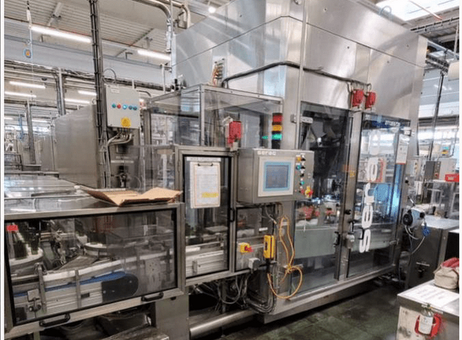

Distributor-rectifier

Manufacturer: BCM

Model: 1000-62

Year: 2001

Vial size range:

Min/max height: 75 to 240 mm

Min/max length: 40 to 105 mm

Min/max width: 30 to 100 mm

Min/max diameter: 30 to 100 mm

9 corridors

Pitch: 125mm

Bucket: 70 x 125 x 70 mm

Electrical power: 4 kVA

Pneumatic consumption: 180 L/min

Pressure: 6 bar

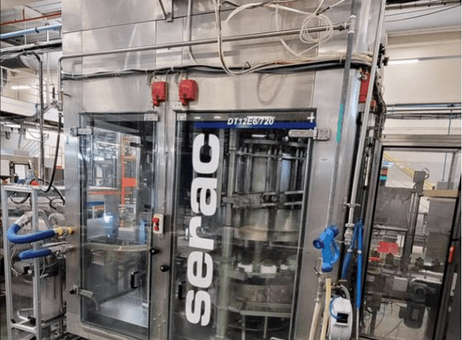

Filler-capper

Manufacturer: Serac

Type: DT12E6/720

Year: 2002

Filler characteristics

Vial size range:

Min/max height: 100 to 250 mm

Min/max length: 30 to 95 mm

Min/max width: 30 to 60 mm

Min/max diameter: 30 to 60 mm

Volume: 50 to 620 ml

12 injectors

Capper characteristics

Vial/cap size range

Min/max height: bottle 60 to 310 mm, cap 25 to 40 mm

Min/max length: bottle 30 to 95 mm, cap 25 to 90 mm

Min/max width: bottle 30 to 60 mm, cap 25 to 50 mm

Min/max diameter: bottle 30 to 60 mm, cap 25 to 50 mm

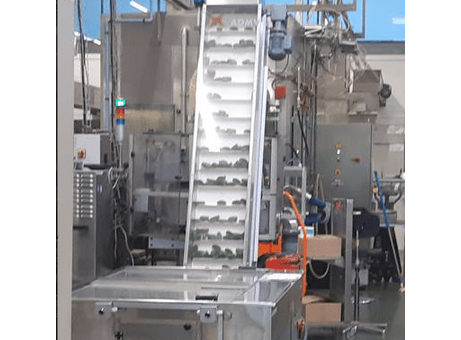

Vibrating bowl and giraffe for capsules

Bowl: manufacturer ADV / model DI 10 DR / year 2002

Giraffe: manufacturer ADMV

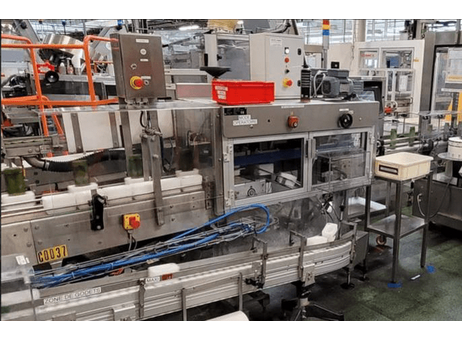

Degodizer

Manufacturer: Serpia

Year: 2010

Processed product format: diameter from 10 to 100 mm / height 250 mm

Type: twin-belt conveyor 1000 x 100 mm

Speed: variable, from 8 to 40 m/min

Useful width: adjustable from 10 to 100 mm

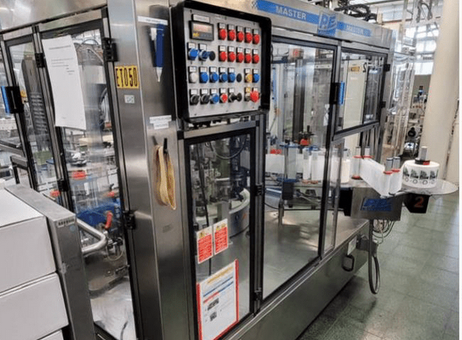

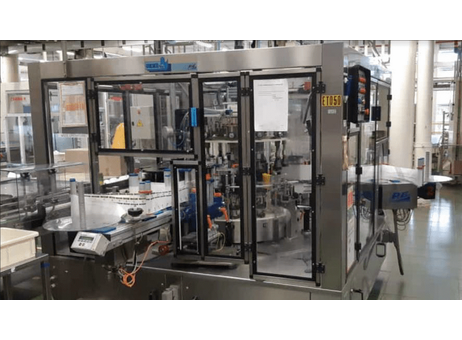

Labeler

Manufacturer: PE master

Type: 12T 825 25 2 E

Vial size range:

Min/max height: 60 to 330 mm

Min/max length: 30 to 105 mm (flat)

Min/max width: 25 to 50 mm

Min/max diameter: 30 to 50 mm

Label format:

Min/max height: 20 to 190 mm

Min/max length: 19 to 160 mm

No “banding”

Coil: max diameter 400 mm, max height 190 mm

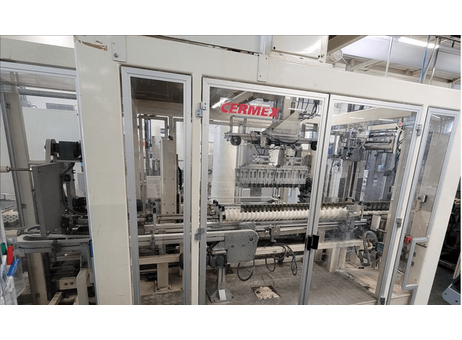

Cash boxer

Manufacturer: Cermex

Model: AN40

Year: 2002

Bottle size range

Min/max height: 120 to 250 mm

Min/max length: 30 to 120 mm

Min/max width: 30 to 50 mm

Min/max diameter: 30 to 50 mm

Tray format range

Maximum height: 140 mm

Maximum length: 388 mm

Maximum width: 284 mm
